- Suitable for use at sides and corners
- Adjustable for 5/16" to 1½" (8mm to 38mm) thick tiles / pavers
- Quick and easy to use and adjust
- Kit contains 10 x top plates, 30 slide in retainer clips and 10 base retainer adaptors.

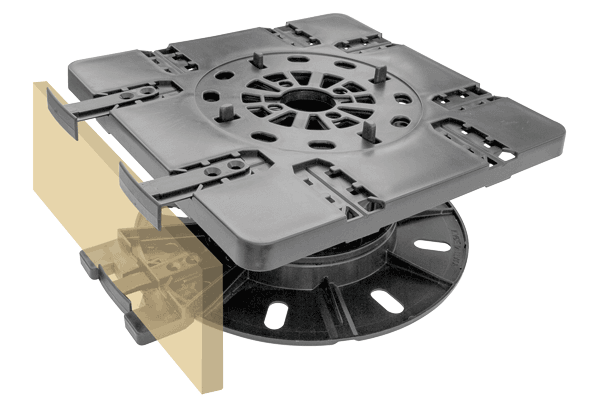

The side finishing adaptor kit is designed for use with StrataRise pedestal supports for tiles and pavers. It permits the vertical mounting of tiles to provide step risers or edges for raised patio installations. Each unit comprises one square top plate, which fits directly onto the top of pedestal, 3 slide-in side mount retainer clips and a base retainer adaptor that will clip into the base plate of the StrataRise pedestal.
Installation: Position the support pedestals so that the edge of the square top plate is inset from the edge of the pavers by the thickness of the side tile. Remove the tile spacer fins from the pedestal where these are not required. Fit the base retainer adaptor into the baseplate of the pedestal, positioning this so that the adaptor is projecting forwards. Place the pre-cut tile or paver side piece into position - slide one side retainer clip into the the base retainer/s and slide the required number of side mount retainer clips into the square top plate slots to secure.

Ref No. | Description | Pack pcs. | Pallet pcs. |
---|---|---|---|
3560 EX25 | Extension 1" (25mm) for 3560 & 4166 Multi-Level Pedestals | 30 | 2700 |
3560 EX50 | Extension 2" (50 mm) for 3560 & 4166 Multi-Level Pedestals | 30 | 1620 |
3560 EX100 | Extension 4" (100 mm) for 3560 & 4166 Multi-Level Pedestals | 30 | 1200 |
1836 EX9 | Extension Ring 3/8" (9mm) for 1836 & 2442 Low Profile Pedestals | 30 | 3780 |
SAR1 | Slope Adjuster - 1° Ø 4.72" (120mm) | 30 | - |
SAR3 | Slope Adjuster - 3° Ø 4.72" (120mm) | 30 | 3240 |
SAR5 | Slope Adjuster - 5° Ø 4.72" (120mm) | 30 | - |
AS120-2-30 | Acoustic cushioning rings Ø 4.72" (120mm) | 30 | - |
AS120-3-180 | Acoustic cushioning rings Ø 4.72" (120mm) | 180 | 12960 |
ABP200-3-30 | Base rubber pad Ø 8" (200mm) x 3mm or 8" (200mm) square (as available) | 30 | - |
SLH-P2-15 | Self-Leveling Head - 2mm for Pavers | 15 | |

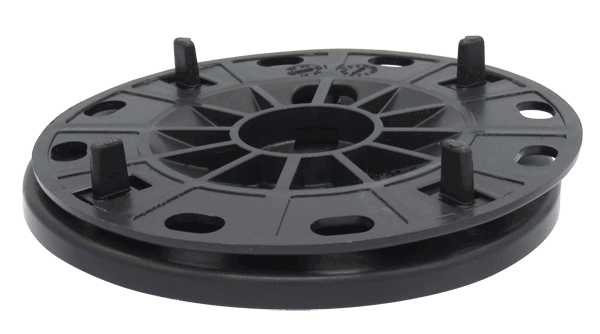

SLH-P4-15 | Self Leveling Head - 4mm for Pavers | 15 | |

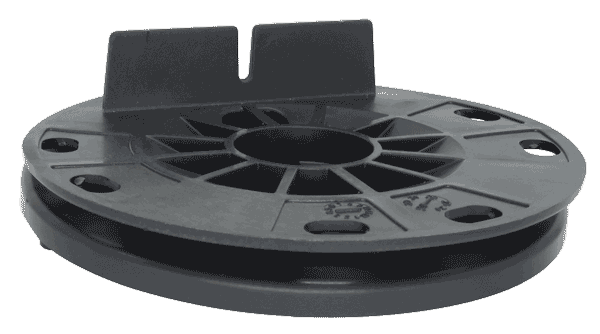

SLH-DF-15 | Self-Leveling Head - DF for Wood Beams | 15 | |
SMP-KIT-10 | Side Mounting Plate Kit for Pedestals | 10 |
