1020XLP-P2 & P4 Extra Low Profile Pedestals for Tiles & Pavers

Adjustable from 0.39" to 0.79" (10mm to 20mm) - designed for very low threshold height projects

The Extra Low-Profile 1020 pedestal is a specially designed support for use in areas where low threshold heights are encountered. The pedestals are adjustable from 0.39" to 0.59" (10 to 15mm) as standard, or 0.59" to 0.79" (15mm to 20mm) with the 0,2" (5mm) height extender ring supplied with each pedestal.

Each support is composed of a threaded head section with 4 removable tabs 5/64" or 5/32" (2mm or 4mm) in width for paver or tile spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centres of large slabs, or at sides and corners.

An easy to operate threaded adjustment ring and scale markings, on the pedestal head, makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation. As standard, each Extra Low-Level 1020 pedestal comes complete with one 0.2" (5mm) extender ring.

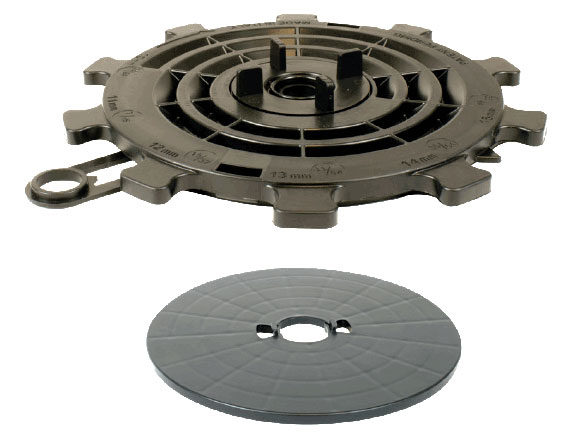

Stratarise 1020 Extra Low Profile Paver Pedestal

The head and base have a diameter of 6" (156mm), with a support surface of 29.6" (191cm²), providing stable installations on most surfaces. Suitable for use indoors and outdoors, water channels are provided in the base for drainage.

StrataRise Pedestals ... the professional's choice!

Accessories

1020-ACOU-30 - This is a special molded 5/64" (2mm) thick rubber ring to fit to the top of the support head to provide acoustic damping by reducing transmitted noise through the pedestal.

1020-EX05-30 - Additional Height Extender Ring 0.2" (5mm) - can be used in multiples. (Note: If adjustment heights higher than 20mm are needed you may wish to consider using the 1836LP-DF pedestal rather than adding multiple rings to the 1020 pedestal).

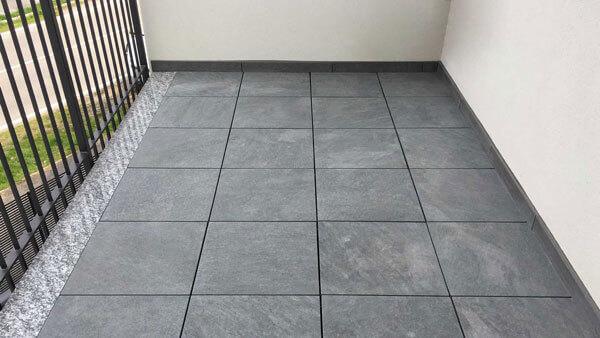

ABP-200-3-30 - An optional 1/8" thick anti-slip, cushioning, rubber base ring is available for use on membranes, etc. This effectively reduces transmitted noise when mounted on balconies or roof areas, as well as for floors in multi-occupancy buildings.

Technical Data

Stratarise 1020 Extra Low Profile Pedestals - Technical Data
Ref No. 1020XLP-P4-30 1020XLP-P4-10 1020XLP-P2-30 1020XLP-P2-10
Description Extra Low Profile Joist Support Pedestal with 4 spacer tabs
Height Adjustability 0.39" to 0.79" (10mm to 20mm) - P2 = 5/64" / P4 = 5/32" Spacers
Pack Qty. 30 10 30 10
Pallet Pcs. 1620 - 1620 -

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates channels for the outflow of water.

Available in two versions, this versatile pedestal support can be used with any type of self-supporting tile or paver.

Designed for the Professional

Designed for the professional, with industry leading specifications, StrataRise pedestals are fast and easy to work with, allowing precise adjustment without any need to lift off the paver or tile to make adjustments. Each 1020XLP Pedestal is supplied with one 0.20" (5mm) height extension ring as standard.
