Hercules 3000 Fixed Head & Self-Leveling Pedestals for Pavers & Joists

Designed for professional, heavy duty, use in public and private locations. From 1" (25mm) to 11" (280mm) and higher with extensions

This 'top of the range' professional pedestal support system is designed for installations where high loads may be encountered, such as in public areas, and is also ideal for high rise applications. The Hercules pedestals have large, load spreading, 8.25" (210mm) or 9" (230mm) diameter bases with heavy support ribs making them capable of supporting up to 6,600 lbf (3,000 kgf).

The very high load capabilty ensures these pedestals are suitable for use across a very wide range of leveling applications from patios, decks and roof gardens through to external buildings, log cabins, large hot tubs, surface pools and more. The pedestals are ideal for large decks with long joist spans (using 6" or 12" height joists), reducing the number of support points compared with other pedestal systems with lower weight carrying capacities.

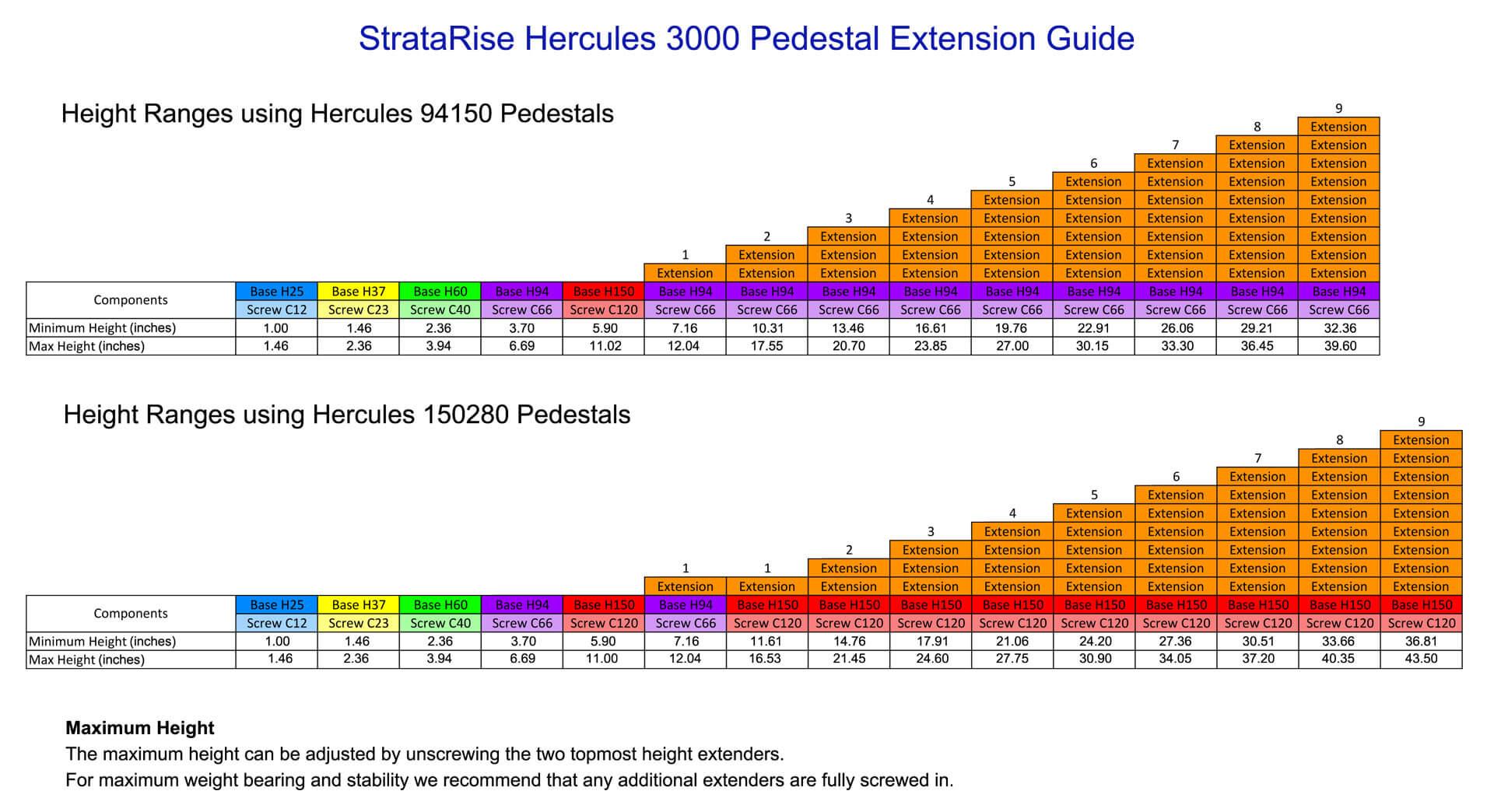

A range of 5 pedestal bases offers adjustabilty starting from 1" (25mm) height up to 11" (280mm) depending on the model used. The two largest pedestals can also be further extended to any required height by addition of one or more screw-in extender sections - available separately. Each Extender can be adjusted to provide from 3.15" to 5.5" (80mm to 140mm) of additional height - (Note: Improved item, not as shown in product video).

The pedestals are adjustable either from below or, for pavers, from above using the special adjustment tool.

  • Heavy Duty - up to 6,600 lbf (3000 kgf) load capacity
  • Versions for Pavers and for Decking Joists
  • Fixed or Self-Leveling Heads
  • Integrated Acoustic Rubber Layer on all Heads
  • From 1" to 11" (25 to 280mm) and extendable to any height
  • Adjustment from above for paver installations

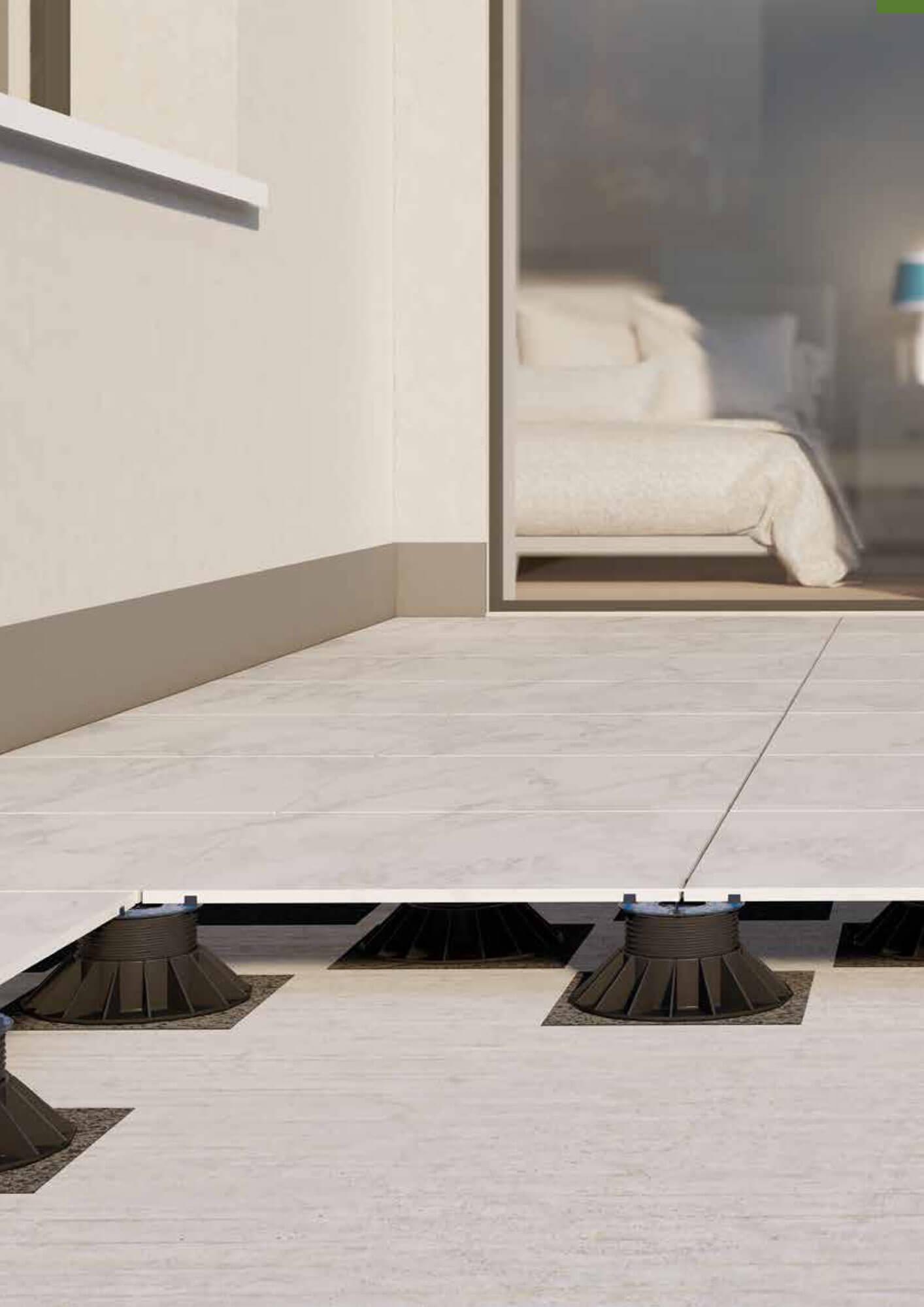

StrataRise Hercules 3000 Pedestals range

Each pack contains the complete pedestal with base, screw section and head plate to suit either pavers or joists. The head plates all come complete with an integrated acoustic rubber layer for cushioning and for noise trasmission reduction.

Paver heads have four removable 5/32" (4mm) thick spacer tabs and, for joist support the head plates have a single upstand flange with a slot for screw fixing to the joist if required. Both self-leveling (up to 5° slopes) or fixed heads are available as required. Note: Self-Leveling heads are not recommended for use with high rise installations, where it is better to ensure the base is level and the pedestal column is vertical as this ensures maximum strength with the weight transmitted down the centres of the pedestal construction.

Height adjustment of the pedestals can be achieved from below by rotating the bases and screw parts or, in the case of paver installations, also from above after installing the pavers by using a special adjustment key (available separately).

Extra large 8.25" (210mm), or 9" (230mm) base plates on the 2.36" (60mm) and larger pedestals, provide stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional square 9" x 1/8" (230mm x 3mm) thick anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where pavers are mounted on balconies or roof areas.

StrataRise Hercules pedestals are tested to withstand a maximum 6,600lbf (3,000 Kgf). At their weakest setting, i.e. maximum height adjustment with just one thread engaged, they will support at least 3,300 lbf (1,500Kgf).

StrataRise Pedestals ... the professional's choice!
Stratarise Hercules clip on pedestal heads for pavers and joists
Stratarise Hercules clip on Pedestal Heads
Fixed or Self-Levelling
with integrated Acoustic Rubber layer
for Pavers or Joists
StrataRise Hercules Paver pedestal with Top Adjuster Key
Ref No.DescriptionHeight (in.)Box Qty.
2537-HERC-P4-F-30Hercules Paver Support - 5.32" (4mm) Fixed Headfrom 1 to 1.4630 pcs.
3760-HERC-P4-F-30Hercules Paver Support - 5.32" (4mm) Fixed Headfrom 1.46 to 2.3730 pcs.
60100-HERC-P4-F-25Hercules Paver Support - 5.32" (4mm) Fixed Headfrom 2.37 to 3.9425 pcs.
94150-HERC-P4-F-20Hercules Paver Support - 5.32" (4mm) Fixed Headfrom 3.94 to 5.9020 pcs.
150280-HERC-P4-F-15Hercules Paver Support - 5.32" (4mm) Fixed Headfrom 5.9 to 1115 pcs.
2537-HERC-P4-SL-30Hercules Paver Support - 5.32" (4mm) Self-Level Headfrom 1 to 1.4630 pcs.
3760-HERC-P4-SL-30Hercules Paver Support - 5.32" (4mm) Self-Level Headfrom 1.46 to 2.3730 pcs.
60100-HERC-P4-SL-25Hercules Paver Support - 5.32" (4mm) Self-Level Headfrom 2.37 to 3.9425 pcs.
94150-HERC-P4-SL-20Hercules Paver Support - 5.32" (4mm) Self-Level Headfrom 3.94 to 5.9020 pcs.
150280-HERC-P4-SL-15Hercules Paver Support - 5.32" (4mm) Self-Level Headfrom 5.9 to 1115 pcs.
2537-HERC-DF-F-30Hercules Support - Fixed Head for Joistsfrom 1 to 1.4630 pcs.
3760-HERC-DF-F-30Hercules Support - Fixed Head for Joistsfrom 1.46 to 2.3730 pcs.
60100-HERC-DF-F-25Hercules Support - Fixed Head for Joistsfrom 2.37 to 3.9425 pcs.
94150-HERC-DF-F-20Hercules Support - Fixed Head for Joistsfrom 3.94 to 5.9020 pcs.
150280-HERC-DF-F-15Hercules Support - Fixed Head for Joistsfrom 5.9 to 1115 pcs.
2537-HERC-DF-SL-30Hercules Support - Self-Level Head for Joistsfrom 1 to 1.4630 pcs.
3760-HERC-DF-SL-30Hercules Support - Self-Level Head for Joistsfrom 1.46 to 2.3730 pcs.
60100-HERC-DF-SL-25Hercules Support - Self-Level Head for Joistsfrom 2.37 to 3.9425 pcs.
94150-HERC-DF-SL-20Hercules Support - Self-Level Head for Joistsfrom 3.94 to 5.9020 pcs.
150280-HERC-DF-SL-15Hercules Support - Self-Level Head for Joistsfrom 5.9 to 1115 pcs.
HERC-EX80/140Extension for Hercules 94150 & 150280 pedestal basesfrom 3.15 to 5.520 pcs.
HERC KEYKey for Hercules Supports-1 pcs.
