Stratarise Titan HD Permeable Paver / Gravel Grids - 10 pack (27.78 SQ. FT.)

Titan Permeable Paver Gravel Grids are designed for heavy duty use in public and private locations for driveways, paths and parking areas.

Stratarise Titan Permeable Grass & Gravel Paver System - 100% Recycled Polypropylene, 186,383 lb/ft² Load Capacity, 1⁹⁄₁₆" Thickness, 27.8 sq.ft Coverage - 10-Pack

  • TOUGH AND SUSTAINABLE: Made from 100% recycled polypropylene, our gravel grid system is designed for outstanding durability and long-lasting performance. The pack includes 10 pavers, each with a 1⁹⁄₁₆" thickness, covering 27.8 square feet.

  • EXTREME LOAD CAPACITY: Engineered to support up to 186,383 lb per square foot (depending on the base and fill material), the Stratarise Titan pavers provide exceptional stability for various outdoor projects. Each paver measures 20" L x 20" W x 1⁹⁄₁₆" H.

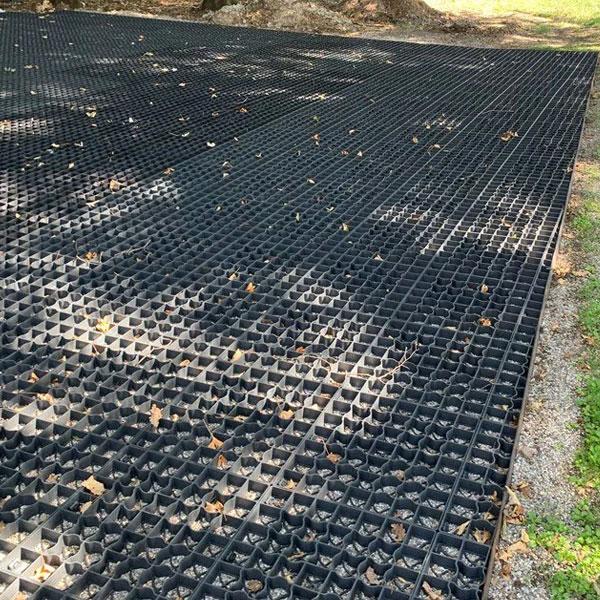

  • VERSATILE USAGE: Perfect for creating gravel parking grids, driveways, walkways, and bases for garden structures, the Titan Permeable Paver System is versatile and adaptable for multiple outdoor applications.

  • RELIABLE STABILITY: The innovative clip-together design on all four sides ensures strong connections and stability, making these grids ideal for heavy-duty use in diverse outdoor environments.

  • ENVIRONMENTALLY FRIENDLY CHOICE: Designed to handle heavy vehicles while allowing water to permeate through, these paver grids help reduce runoff and replenish groundwater. With increasing stormwater fees and environmental taxes on non-permeable surfaces, these grids are a smart and eco-conscious alternative to traditional paving solutions.

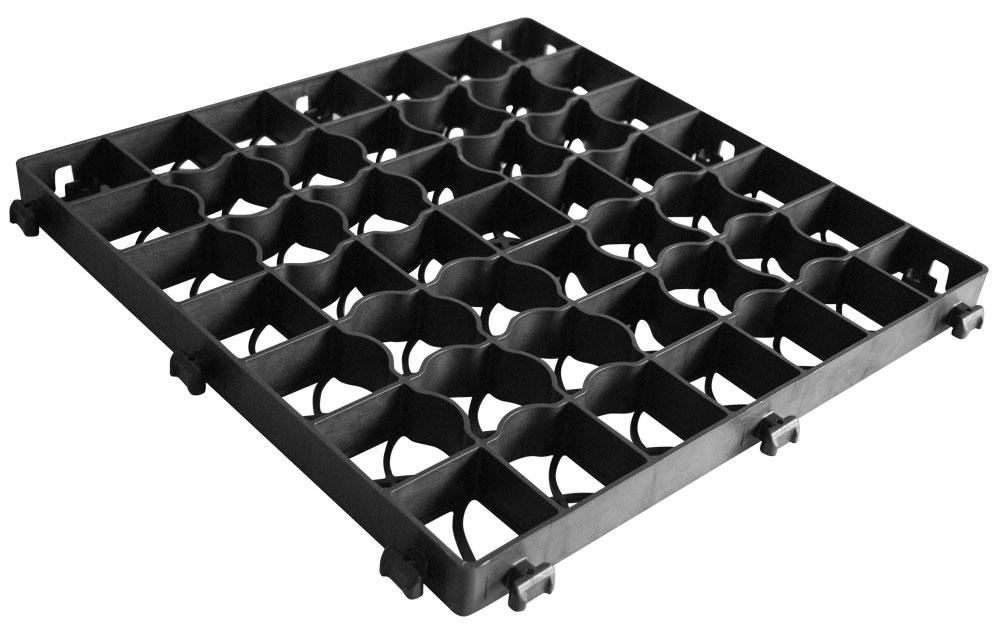

StrataRock Black Gravel Grid
Titan Permeable Paver Gravel Grids from Stratarise

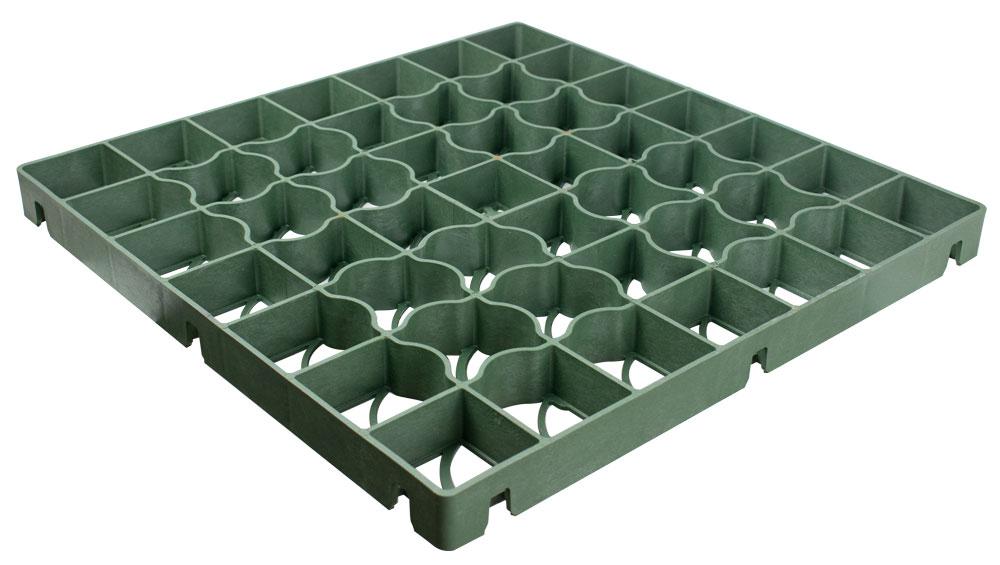

Titan Permeable Paver Gravel Grids in Green
Special rates available for Pallet lots - 288 pcs. - please call for quotation.
Load Capacities
The average values of load class tests conducted according to EN ISO 844 are as follows:
  • Load at 3.8 mm (⅛”): 49.49 kN (11,125 lbf)
  • Max Load: 49,81 kN (11,198 lbf)
  • Deformation at max load: 3.50 mm (⅛”)
  • Stress: 76.97 N/mm² (11,163 lbs sq. in)
  • Max load grid: 2,232 kN (501,773 lb/f)
  • Load per sqm: 910 tonne ( 1,003 US tons)
  • Ideal for creating permeable surfaces for car parks, driveways and paths
  • Suitable for use for either Gravel or Grass areas
  • High Quality product designed and produced in Italy
  • Heavy Duty - Load 186,383 lb per Sq. Ft.
  • Available in Black and Green colors

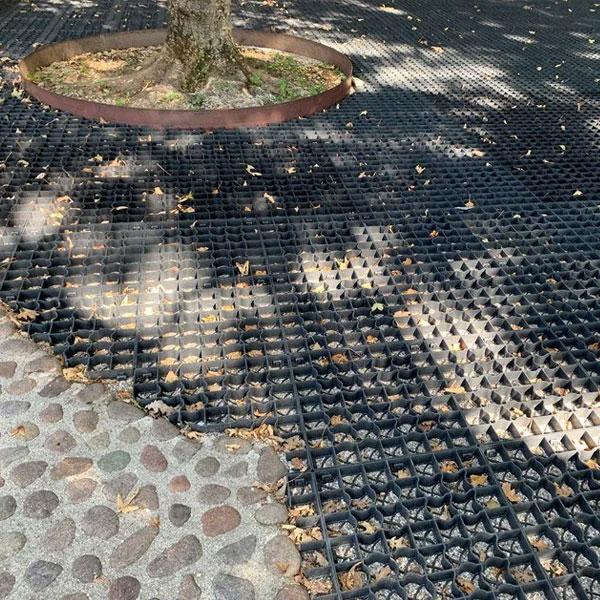

  • Extra strong interlocking system guarantees a perfect connection and stability over the entire surface.

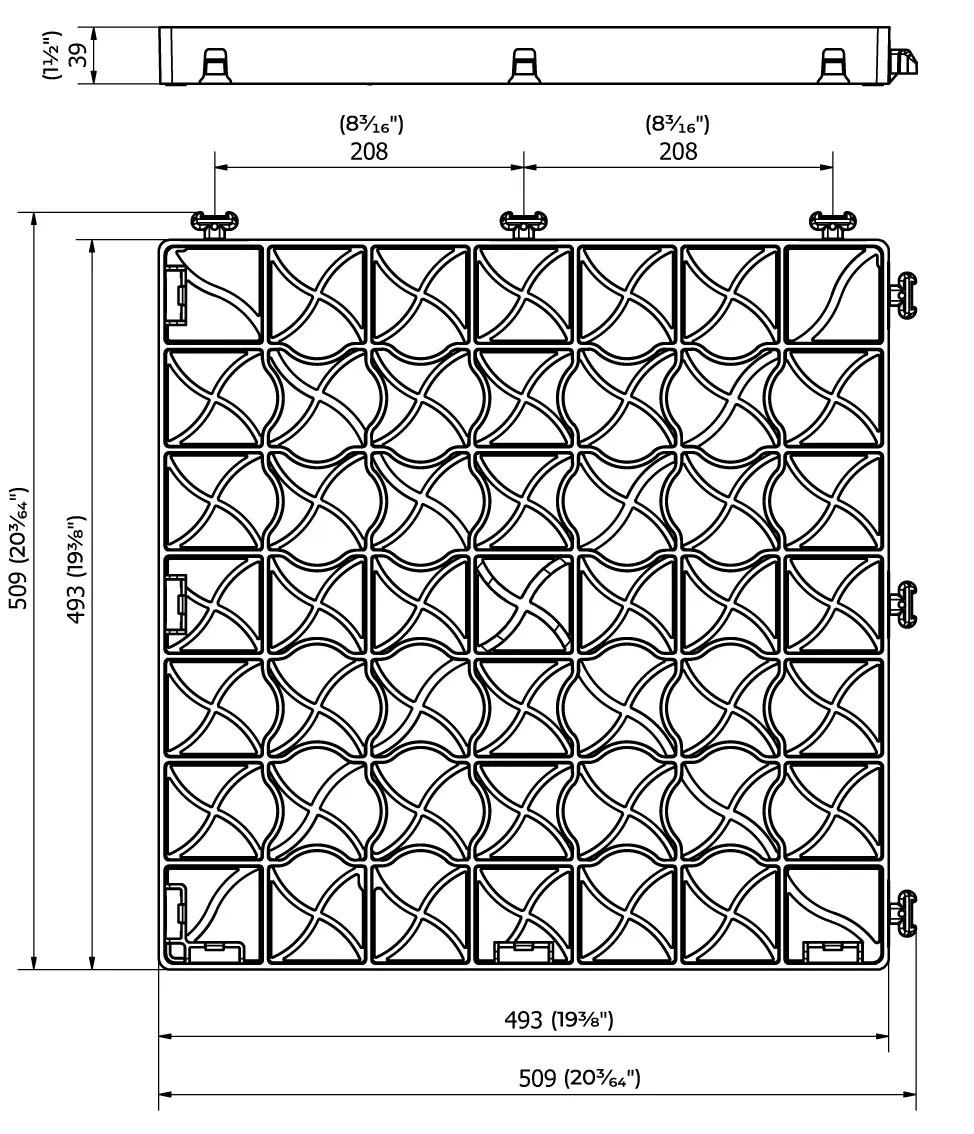

Titan Permeable Paver Gravel Grids technical information
Ref No.DescriptionHeight (in.)Box Qty.
TITAN-HD-BLK-10Stratarise Titan HD Permeable Paver / Gravel Grid - Black500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")10 pcs.
TITAN-HD-GRN-10Stratarise Titan HD Permeable Paver / Gravel Grid - Green500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")10 pcs.
