StrataRise Tiling Spacers & Accessories

A range of Tile Spacers, X-shaped, T-Shaped and Y-Shaped Inserts

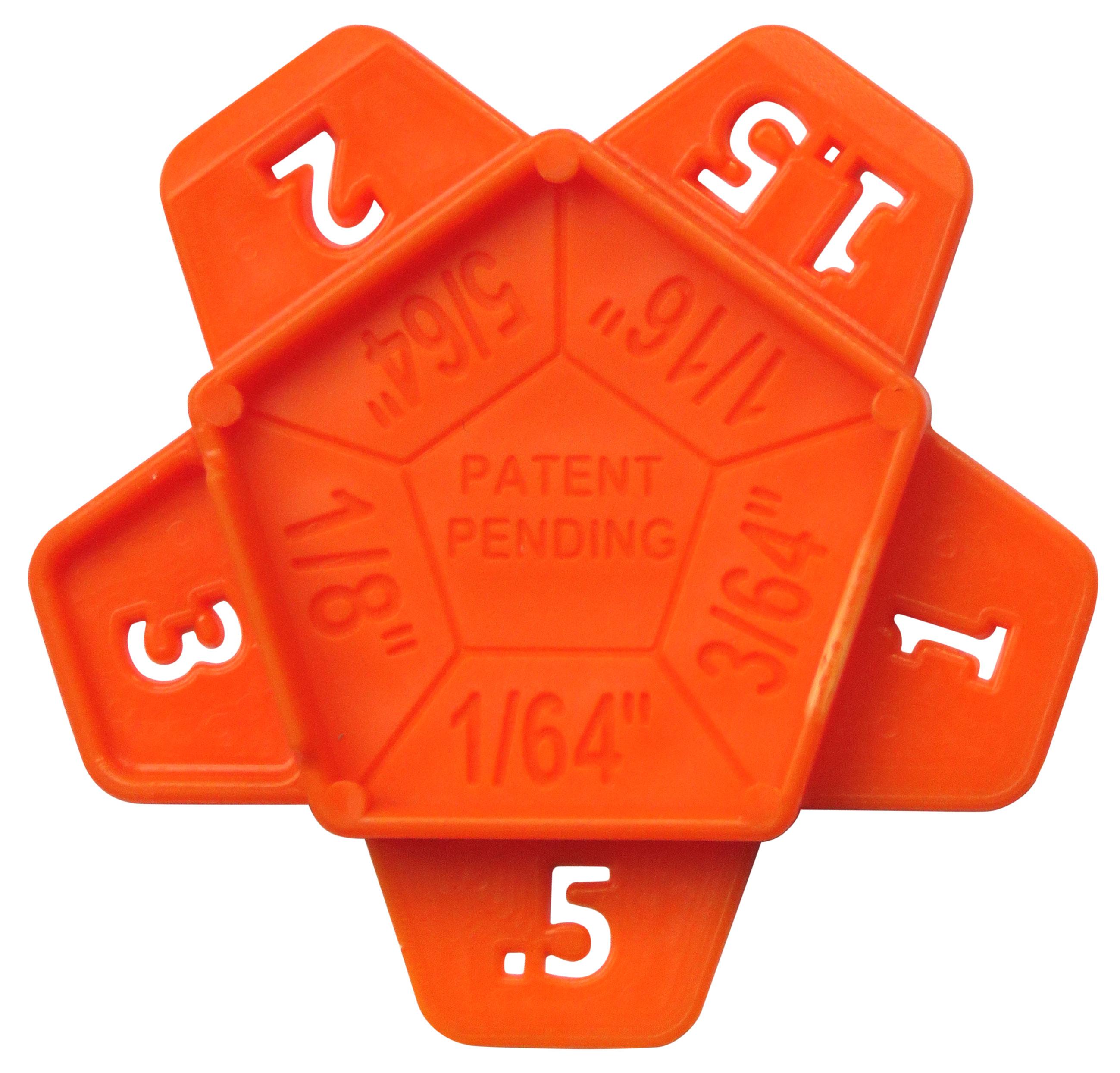

Multi-Size Tile Spacer

This handy multi-size spacer enables quick and easy creation of joints of 0.5mm (1/64"), 1.0mm (3/64"), 1.5mm (1/16"), 2.0mm (5/64") and 3.0 mm (1/8") in width. With this type of spacer, which is removed when the adhesive has dried, you not only get perfectly spaced tiles you also have even grout depths with no inserts left between the tiles.

Features:

  • Based on the UNI 11493-1 Standard (Methodology for the correct installation of ceramic tiles)
  • Designed to define different thickness joints from 1/64" to 1/8" (0.5 to 3 mm)
  • Can be re-used
  • Marked to make each of the 5 sides for the different thickness easily visible
  • Made to be used for both floors and walls
  • Made of plastic material that can be easily cleaned to remove any adhesive residue
  • The Multi-Size spacer guarantees correct, fast, consistent and economical installation.

The StrataRise Multi-spacers are supplied in packs of 200 pieces.

StrataRise  ... the professional's choice!
StrataRise Multi-Size Tile Spacer
Re-usable Tile Spacer

X-Shaped Cross Spacers

StrataRise X-Shape Tile Spacer Inserts

For all types of tile installations using Linear patterns, the use of X-Shape spacers ensures correct joint alignment and a consistent distance between tiles, enabling a neat finish for the grout.

SKU Description Pack Qty
SPACER X-01 Cross Spacer - 1mm (3/64") width 200 pcs.
SPACER X-015 Cross Spacer - 1.5mm (1/16") width 200 pcs.
SPACER X-02 Cross Spacer - 2mm (5/64") width 200 pcs.
SPACER X-025 Cross Spacer - 2.5mm (3/32") width 200 pcs.
SPACER X-03 Cross Spacer - 3mm (1/8") width 200 pcs.
SPACER X-04 Cross Spacer - 4mm (5/32") width 200 pcs.
SPACER X-05 Cross Spacer - 5mm (13/64") width 200 pcs.
SPACER X-07 Cross Spacer - 7mm (9/32") width 200 pcs.
SPACER X-10 Cross Spacer - 10mm (25/64") width 200 pcs.

For all types of tile installations using a brick pattern, the use of T-Shape spacers ensures correct joint alignment and a consistent distance between tiles, enabling a neat finish for the grout.

SKU Description Pack Qty
SPACER T-01 T-Shape Spacer - 1mm (3/64") width 200 pcs.
SPACER T-015 T-Shape Spacer - 1.5mm (1/16") width 200 pcs.
SPACER T-02 T-Shape Spacer - 2mm (5/64") width 200 pcs.
SPACER T-025 T-Shape Spacer - 2.5mm (3/32") width 200 pcs.
SPACER T-03 T-Shape Spacer - 3mm (1/8") width 200 pcs.
SPACER T-04 T-Shape Spacer - 4mm (5/32") width 200 pcs.
SPACER T-05 T-Shape Spacer - 5mm (13/64") width 200 pcs.
SPACER T-07 T-Shape Spacer - 7mm (9/32") width 200 pcs.
SPACER T-10 T-Shape Spacer - 10mm (25/64") width 200 pcs.

T-Shaped Spacers

Y-Shaped Spacers

Stratarise Y-Shaped Tile Spacers

For all types of tile installations using a brick pattern, the use of T-Shape spacers ensures correct joint alignment and a consistent distance between tiles, enabling a neat finish for the grout.

SKU Description Pack Qty
SPACER Y-02 Y-Shape Spacer for Tiles - 2mm (5/64″) width 200 pcs.
SPACER Y-03 Y-Shape Spacer for Tiles - 3mm (1/8″) width 200 pcs.
